Bending beam and shear load cells
 |
| FTK : Bending beam and shear load cells |

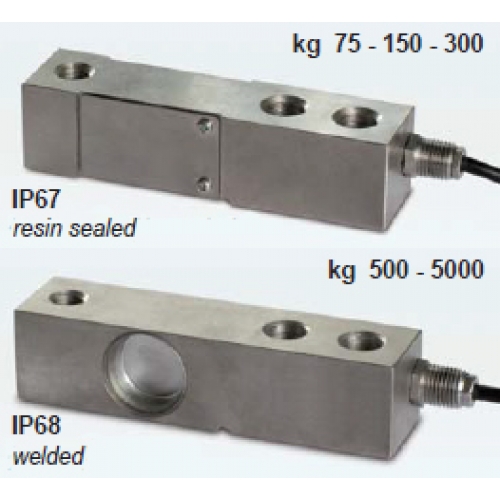

| FTK : kg 75, 150, 300.....BENDING BEAM |
| FTK : kg 500, 1000, 2000.....SHEAR BEAM |
| FTK : kg 3000, 5000.....SHEAR BEAM |
| Options on request : |
|
II 1 G II 2 D (zone 0-1-2-21-22) |
| Technical Features : |
| RATED OUTPUT | 2 mV/V +/-0.4% | |
| TEMPERATURE EFFECT ON ZERO | 0.002 % / °C | |
| TEMPERATURE EFFECT ON SPAN | 0.002 % / °C | |
| COMPENSATED TEMPERATURE RANGE | - 10°C / + 40°C | |
| OPERATING TEMPERATURE RANGE | - 20°C / + 70°C | |
| CREEP AT NOMINAL LOAD IN 30 MINUTES | 0.02 % | |
| MAX SUPPLY VOLTAGE WITHOUT DAMAGE | 15 Volt | |
| INPUT RESISTANCE | 380 ohm +/-40 | |
| OUTPUT RESISTANCE | 350 ohm +/-10 | |
| ZERO BALANCE | +/- 2 % | |
| INSULATION RESISTANCE | > 5000 Mohm | |
| SAFE OVERLOAD (% of Full Scale) | 150 % | |
| ULTIMATE OVERLOAD (% of Full Scale) | > 250 % | |
| DEFLECTION AT NOMINAL LOAD | 0.6 mm |
 |
