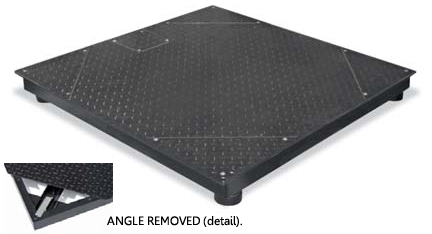

Painted steel platforms with four IP68 load cells

P : Painted steel platforms with four IP68 load cells

P1250 max kg 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . dimens. 1250 x 1250 mm

P1200P1500 max kg 3000 . . . . . . . . . . . . . . . . . . . . . . dimens. 1200 x 1500 mm

P1500 max kg 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . dimens. 1500 x 1500 mm

TELP1250 Galvanized steel frame to be grounded for P1250 with center adjusting brackets.

TELP1200P1500 Galvanized steel frame to be grounded for P1200P1500 with center adjusting brackets

TELP1500 Galvanized steel frame to be grounded for P1250 with center adjusting brackets

P1250RAMP Painted steel access ramp

P1500RAMP Painted steel access ramp

Options on request :

Additional price for non-standard platforms
ATEX version II 1 GD (zone 0-1-2-20-21-22)
Indicator stainless steel stand (Ø 38 mm, h 700 mm) with stainless steel bracket for platform mounting
Indicator stainless steel stand (Ø 38 mm, h 700 mm) with painted steel bracket for platform mounting
Four plates mod. PPV for fl oor mounting (see page 92)
IPX9K: Declaration of conformity + IPX9K marking protection rating for 4 load cells.

		Painted steel structure Inspectable loading top on cells and junction box side. Stainless steel junction box with equalization borad and 6 wires cable (5m) 4 Shear beam AISI 420 stainless steel IP68 load cells (on request IPX9K) Galvanized steel self-centering adjustable jointed feet Two M12 holes for lifting
