Digital weight transmitter
 |
| THF PROFI : Digital weight transmitter (RS485 - PROFIBUS) |
| Options on request : |
|
II 3GD (zone 2-22) |

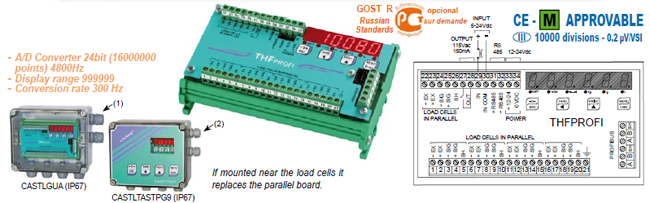

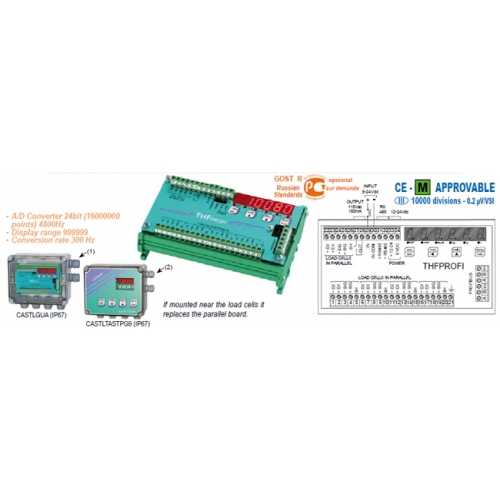

| Weight transmitter and indicator for Omega/DIN rail mounting suitable for back panel or junction box. Six-digit semialphanumeric display (11mm h), 7 segment LED. Four-key keyboard. Dimensions: 148x92x50 mm. IP67 box version dimensions: 170x140x95 mm. Four fi xing holes diameter 4 mm (centre distance 122x152mm). |
| The instrument is equipped with two communication ports : |
| - PC/PLC up to 32 instruments (max 99 with line repeaters) by ASCII Laumas protocol (compatible with W60000) or ModBus RTU. Optional protocols: Profibus DP, Ethernet/ModbusTCP, USB and Radio by appropriate converter. |
| - Slave Profibus DP port (instrument registered to Profibus organization - PNO), max 32 instruments without line repeaters; max 126 instruments with line repeaters. |
| - RS485 for connection to : |
| - PC/PLC up to 32 instruments (max 99 with line repeaters) by ASCII Laumas protocol (compatible with W60000) or ModBus RTU protocol. Optional Protocols: Ethernet/ModbusTCP, USB and Radio by appropriate converter. |
| - Remote display. |
| THEORETICAL CALIBRATION is performed via the keyboard. |
| Weight transmitter approved OIML R61 (Automatic Gravimetric Filling Instruments) according to WELMEC Guide 8.8:2011 (MID). |
| CE- M approvable EN45501-2009/23/EC-OIML R76:2006 |
| Technical Features : |
| POWER SUPPLY and CONSUMPTION | 12 - 24 VDC +/- 10% ; 5 W | |
| No LOAD CELLS IN PARALLEL and SUPPLY | max 8 ( 350 ohm ) ; 5VDC/120mA | |
| LINEARITY | < 0.01% Full Scale | |
| THERMAL DRIFT | < 0.0005 % F.S. /°C | |
| A/D CONVERTER | 24 bit (16000000 points) 4.8kHz | |
| MAX DIVISIONS (with measure range: +/- 10mV =2mV/V) | ± 999999 | |
| MEASURE RANGE | ± 39 mV | |
| MAX LOAD CELL’S SENSITIVITY | ± 7 mV/V | |
| MAX CONVERSIONS PER SECOND | 300 conversions/sec. | |
| DISPLAY RANGE | - 999999 ; + 999999 | |
| DECIMALS / DISPLAY INCREMENTS | 0 - 4 ; x 1 x 2 x 5 x 10 x 20 x 50 x 100 | |
| DIGITAL FILTER / CONVERSION RATE | 0.012 - 7 sec / 5 - 300 Hz | |
| LOGIC RELAY OUTPUTS | N.1 - max 115 VAC / 150mA | |
| LOGIC INPUTS | N.1 - optoisolated 5 - 24 VDC PNP | |
| RS485 PORT - Baud rate | 2400, 4800, 9600, 19200, 38400, 115200 | |
| PROFIBUS PORT - Baud rate | up to 12 Mbit/s | |
| HUMIDITY (condensate free) | 85 % | |
| STORAGE TEMPERATURE | - 30°C + 80°C | |
| WORKING TEMPERATURE | - 20°C + 60°C | |
| WORKING TEMPERATURE (CE-M APPROVED) | -10°C + 40°C |
| The input can work as: net/gross weight, zero-setting, peak, or can be remotely read via protocol. The output can work as set-point or can be remotely switched via protocol. In monodirectional mode the RS485 port can be directly connected to PC’s or remote display’s RS232 port. |
