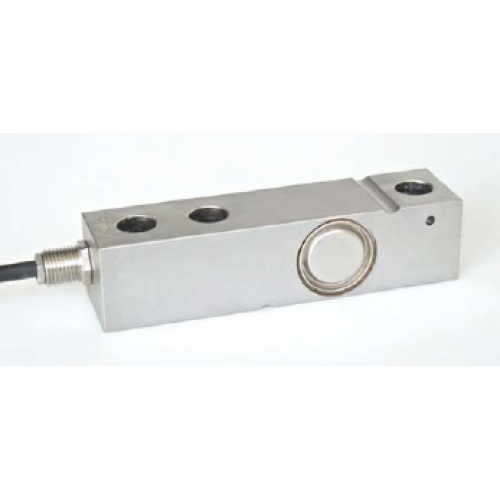

Shear beam load cells
 |
| FTL : Shear beam load cells |
| FTL : kg 300, 500, 1000, 2000 |
| Options on request : |
|
II 1 G  |
| Technical Features : |
| RATED OUTPUT | * 2 mV/V +/- 0.1% | |
| TEMPERATURE EFFECT ON ZERO | 0.002 % / °C | |
| TEMPERATURE EFFECT ON SPAN | 0.0012 % / °C | |
| COMPENSATED TEMPERATURE RANGE | - 10°C / + 40°C | |
| OPERATING TEMPERATURE RANGE | - 20°C / + 70°C | |
| CREEP AT NOMINAL LOAD AFTER 30 MINUTES | 0.016 % | |
| MAX SUPPLY VOLTAGE WITHOUT DAMAGE | 15 Volt | |
| INPUT RESISTANCE | 400 ohm +/- 20 | |
| OUTPUT RESISTANCE | 350 ohm +/- 3 | |
| ZERO BALANCE | +/- 2 % | |
| INSULATION RESISTANCE | > 5000 Mohm | |
| SAFE OVERLOAD (% of Full Scale) | 150 % | |
| ULTIMATE OVERLOAD (% of Full Scale) | > 200 % | |
| DEFLECTION AT NOMINAL LOAD | 0.4 mm |
 |
