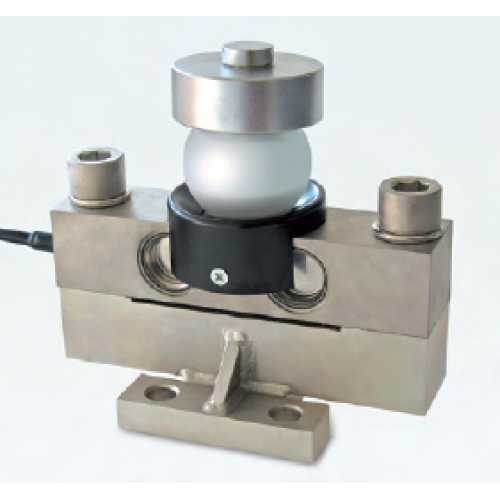

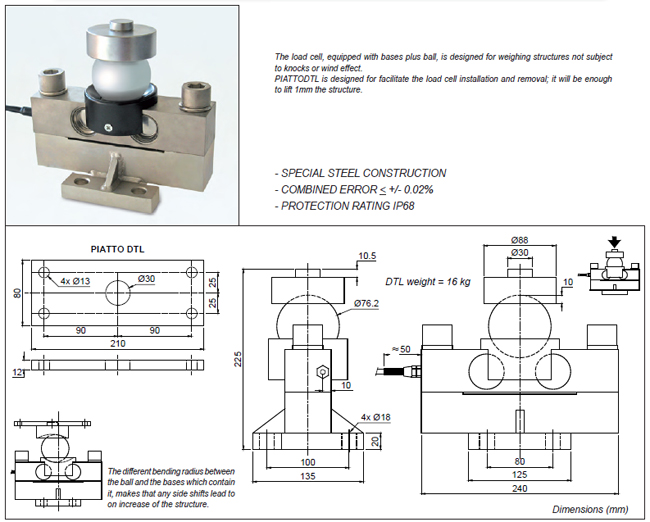

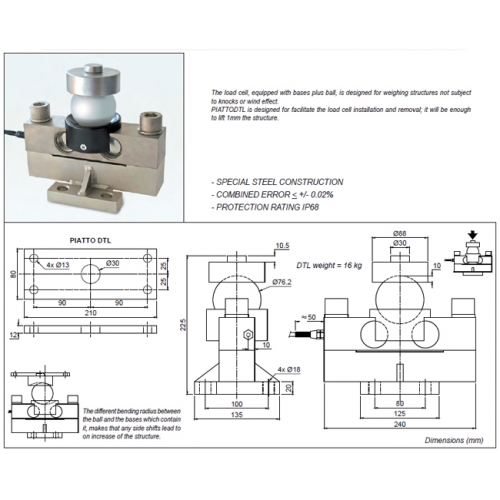

Double shear beam load cells equipped with bases plus ball

DTL : Double shear beam load cells equipped with bases plus ball

FTL : kg 25000 (OIML R60 C3 approved)

DTL : kg 30000

Options on request :

Technical Features :

	RATED OUTPUT	2 mV/V +/- 0.2%
	TEMPERATURE EFFECT ON ZERO	0.002 % / °C
	TEMPERATURE EFFECT ON SPAN	0.002 % / °C
	COMPENSATED TEMPERATURE RANGE	- 10°C / + 40°C
	OPERATING TEMPERATURE RANGE	- 35°C / + 65°C
	CREEP AT NOMINAL LOAD AFTER 30 MINUTES	0.016 %
	MAX SUPPLY VOLTAGE WITHOUT DAMAGE	15 Volt
	INPUT RESISTANCE	765 ohm +/-15 (700 ohm +/-7 *)
	OUTPUT RESISTANCE	701 ohm +/-3 (700 ohm +/-7 *)
	ZERO BALANCE	+/- 2 % (+/- 1% *)
	INSULATION RESISTANCE	> 5000 Mohm
	SAFE OVERLOAD (% of Full Scale)	150 %
	ULTIMATE OVERLOAD (% of Full Scale)	> 200 %
	DEFLECTION AT NOMINAL LOAD	0.6 mm
