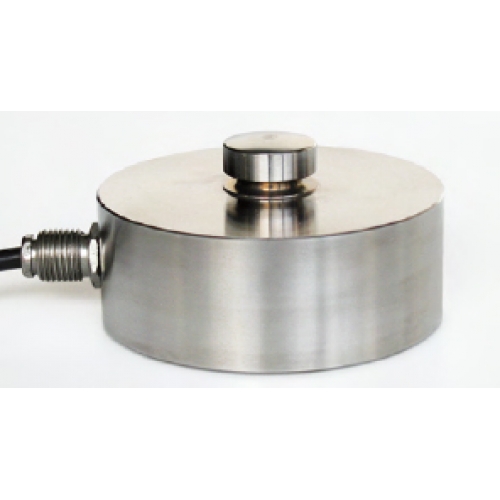

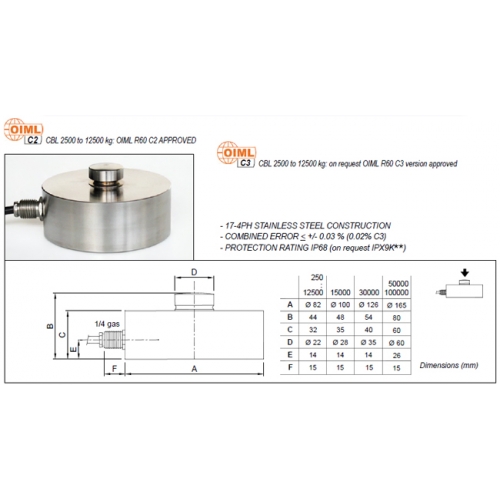

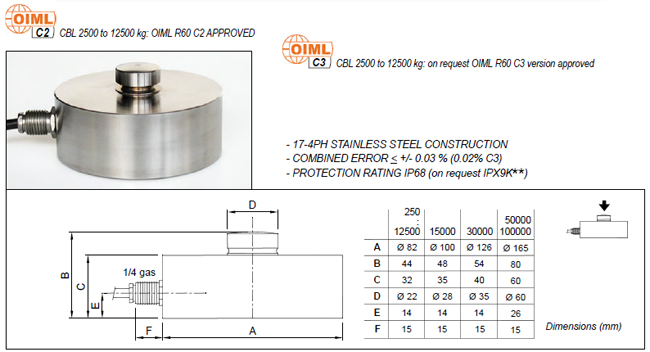

CBL : Compression load cells - low profile

CBL : kg 250, 500, 1000, 2500, 5000, 7500, 10000

CBL : kg 12500

CBL : kg 15000

CBL : kg 30000

CBL : kg 50000, 100000

Options on request :

On request cable 10 meters
ATEX approved II 1 G II 2 D (zone 0-1-2-21-22)
SIT traceability certifi cate (E. A.)
IPX9K: Declaration of conformity + IPX9K marking protection rating

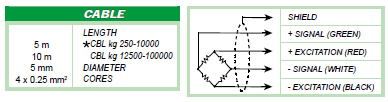

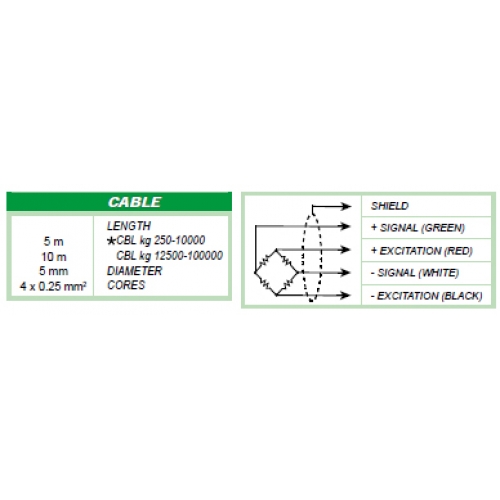

Option for dual safety redundant systems: two Wheatstone Bridges (350ohm) and two cables

Technical Features :

	RATED OUTPUT	2 mV/V +/- 0.1%
	TEMPERATURE EFFECT ON ZERO	0.005 % / °C
	TEMPERATURE EFFECT ON SPAN	0.003 % / °C
	COMPENSATED TEMPERATURE RANGE	- 10°C / + 50°C
	OPERATING TEMPERATURE RANGE	- 20°C / + 70°C
	CREEP AT NOMINAL LOAD AFTER 4 HOURS	0.03 %
	MAX SUPPLY VOLTAGE WITHOUT DAMAGE	15 Volt
	INPUT RESISTANCE	700 ohm +/- 3
	OUTPUT RESISTANCE	700 ohm +/- 5
	ZERO BALANCE	+/- 1 %
	INSULATION RESISTANCE	> 10000 Mohm
	SAFE OVERLOAD (% of Full Scale)	150 %
	ULTIMATE OVERLOAD (% of Full Scale)	> 300 %
	DEFLECTION AT NOMINAL LOAD	0.4 mm

Water protection when cleaning high pressure / steam jet (Test: pressurized hot water is sprayed from a distance of 150 mm). Water pressure 100 bar; temperature 80 ° C; test duration 250 seconds (Reference standard DIN 40050-9).
